KF-2500 is a 3-axis servo robot for up to 2500 kN injection molding machines. The side-entry arm works in the gap between platens, which is the right choice when headroom above the machine is limited and the part is light.

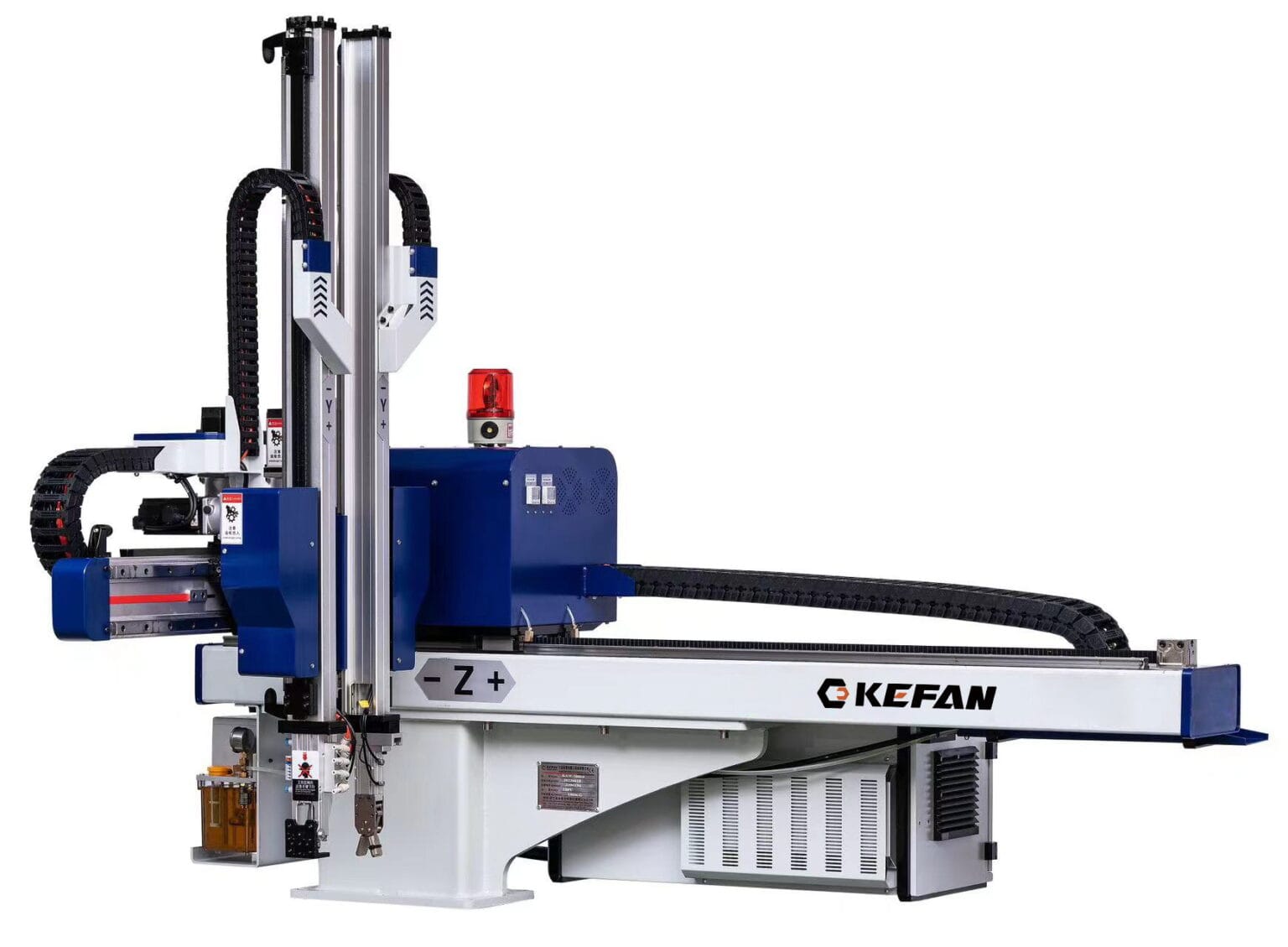

KEFAN compact top-entry servo robot, KF series

Specifications

Injection molding machine clamping forceup to 2500 kN
Minimum in-mold time1.0 sec
Dry cycle time6.5 sec
Maximum payload5 kg
LayoutSide entry

Standard configuration shown. Stroke, payload and EOAT options can be customised — confirm your machine interface and part geometry with our engineer before ordering.

When KF-2500 fits your cell

  • Low headroom above the machine.
  • Short in-mold and dry cycle times on fast-running molds.
  • Light parts where a compact envelope is sufficient.
  • Cells where a top-entry gantry is physically not possible.

EOAT and integration

Light parts and short in-mold times mean the EOAT is usually vacuum-based and kept as light as possible, because every gram of tooling eats into the payload and cycle budget.
