6-Axis Industrial Robot Arms
6-Axis Industrial Robot Arms for Custom Automation
Flexible six-axis robots for robotic welding, CNC machine tending, injection molding automation, assembly, material handling and palletizing. KEFAN helps match the robot, end-of-arm tooling and controls to your workpiece and production target.
One Robot Platform, Multiple Production Tasks
A useful robot recommendation starts with the part, process and required cycle time. Our engineers review payload, reach, wrist load, installation space, environmental protection and machine communication before selecting a six-axis industrial robot arm.
Long-reach welding robots
The 6 kg CX0614H and CX0620H models use a hollow-arm structure that helps route welding cables and reduce interference around the wrist.
CNC loading and unloading
Automate repetitive loading, unloading and part transfer around CNC lathes, machining centers and other production equipment.
Injection molding and press handling
The compact CX0808 combines an 8 kg payload, 827 mm reach and IP67 protection for confined or demanding production environments.
Handling, assembly and palletizing
Choose 10 kg, 25 kg or 50 kg payload models for component transfer, assembly support, packaging and end-of-line handling.
Compare Payload, Reach and Application Fit
The range covers compact, welding, general-purpose and heavy-handling applications. Final selection should also consider the tool weight, center of gravity, working envelope and required motion speed.
CX0614H / CX0620H
6 kg welding robots with 1453 mm or 1982 mm reach and +/-0.05 mm repeatability.

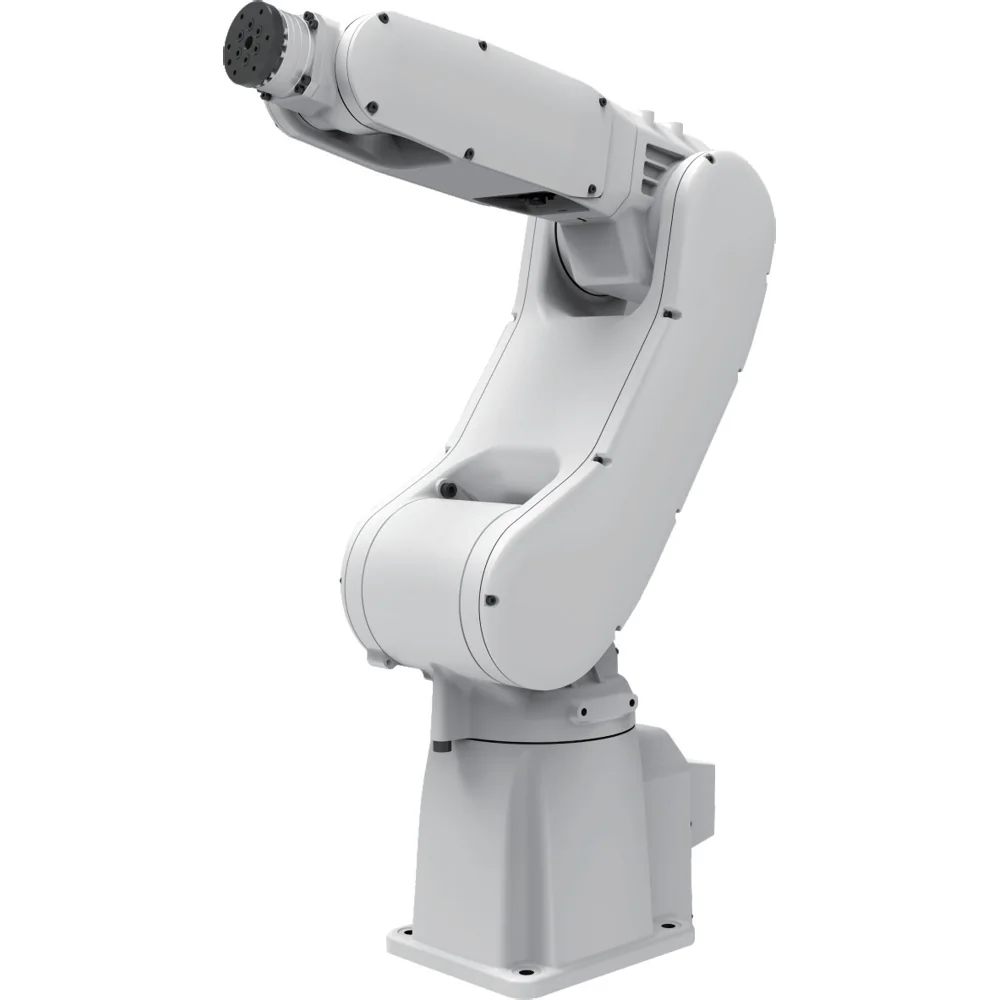

CX0808
Compact 8 kg robot with 827 mm reach, +/-0.05 mm repeatability and IP67 protection.

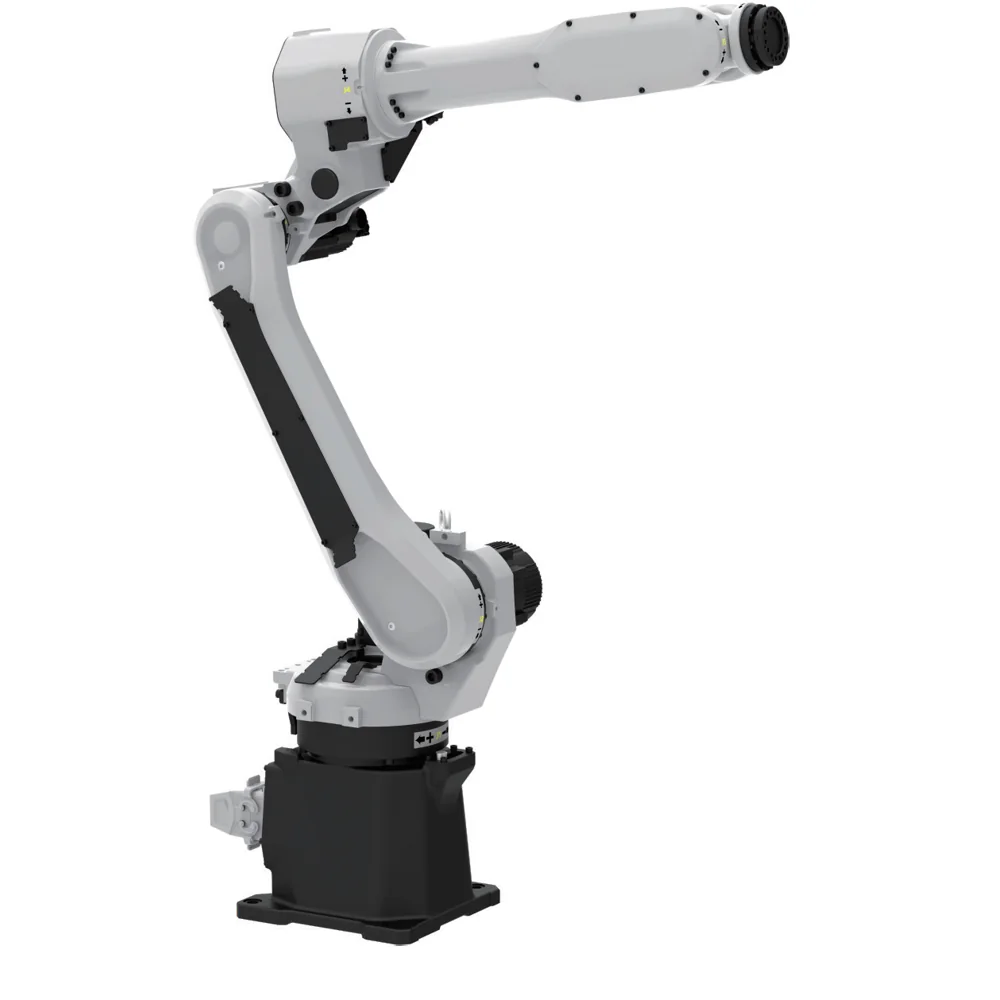

CX1015
General-purpose 10 kg robot with 1499 mm reach for machine tending, handling and assembly.

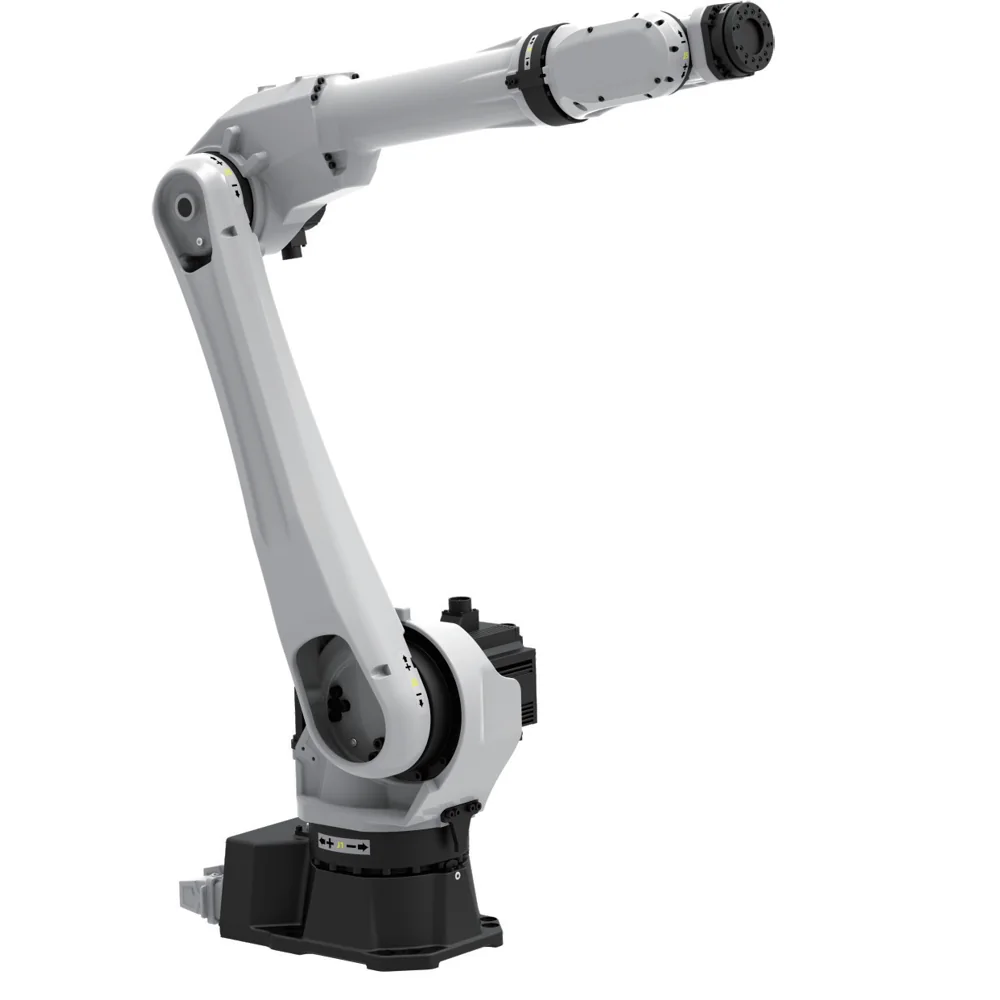

CX2518
25 kg payload and 1808 mm reach for heavier components, transfer and production handling.

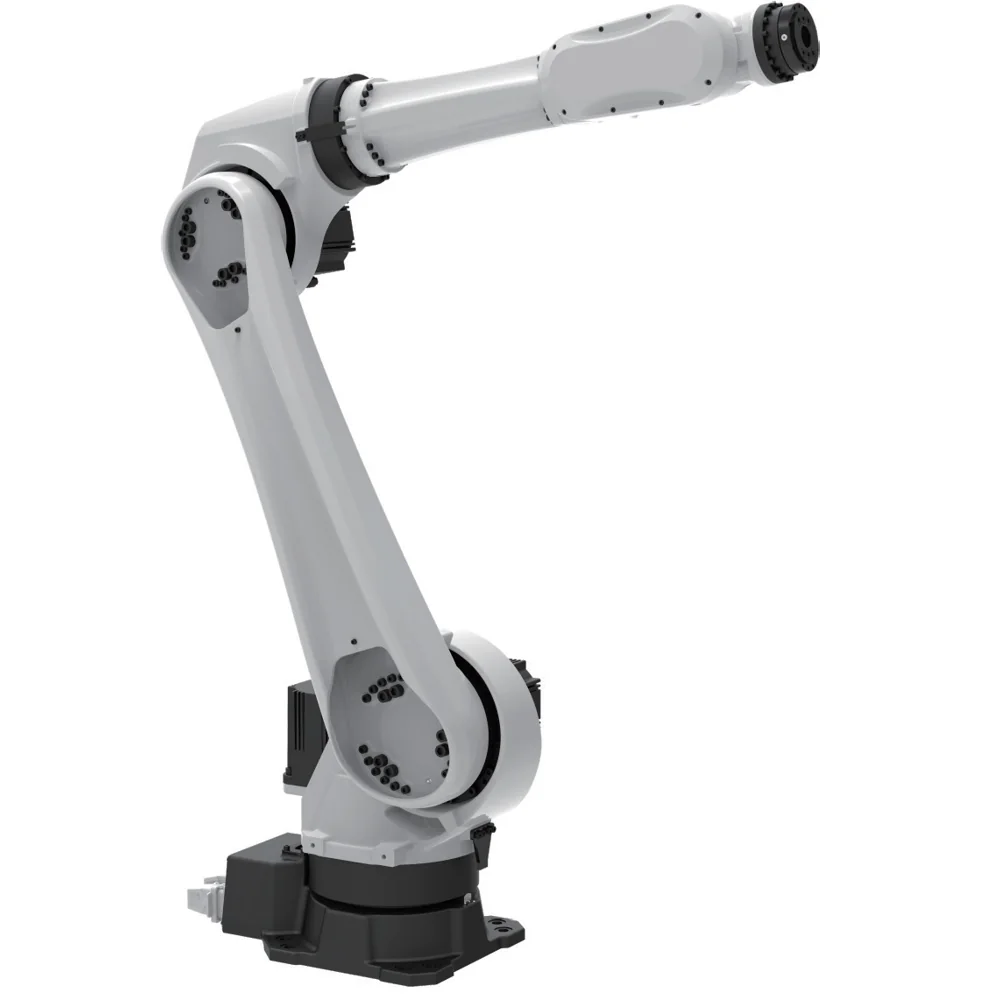

CX5022
50 kg payload and 2268 mm reach for heavy handling, loading and palletizing tasks.
| Model | Payload | Reach | Repeatability | Protection | Typical application |
|---|---|---|---|---|---|
| CX0614H | 6 kg | 1453 mm | +/-0.05 mm | IP54, wrist IP65 | Robotic welding |
| CX0620H | 6 kg | 1982 mm | +/-0.05 mm | IP54, wrist IP65 | Long-reach welding |
| CX0808 | 8 kg | 827 mm | +/-0.05 mm | IP67 | Injection molding, press handling |
| CX1015 | 10 kg | 1499 mm | +/-0.08 mm | IP54, wrist IP67 | CNC tending, assembly |
| CX2518 | 25 kg | 1808 mm | +/-0.08 mm | IP54, axes 4-6 IP67 | Material handling |
| CX5022 | 50 kg | 2268 mm | +/-0.10 mm | IP54 | Heavy handling, palletizing |
Specifications are used for preliminary model comparison. Payload diagrams, wrist inertia, installation orientation and application conditions must be reviewed before final selection.
Built Around Your Machine and Process
KEFAN can support the robot arm as part of a wider automation project, including end-of-arm tooling, fixtures, safety guarding, vision, conveyors and production equipment communication.
For a practical proposal, share the workpiece drawing, part weight, current process video, machine model, target cycle time and available floor space.
Controller and communication options
- Standard networks: EtherCAT, Modbus TCP, EtherNet/IP and TCP/IP
- Optional networks: DeviceNet, PROFIBUS, PROFINET and CC-Link
- Process options: welding, seam tracking, vision and multi-axis coordination
- Expansion: support for up to three external axes, subject to configuration
- Teach pendant: IP65 protection with application-oriented programming
Assembly, Environmental Testing and Motion Validation

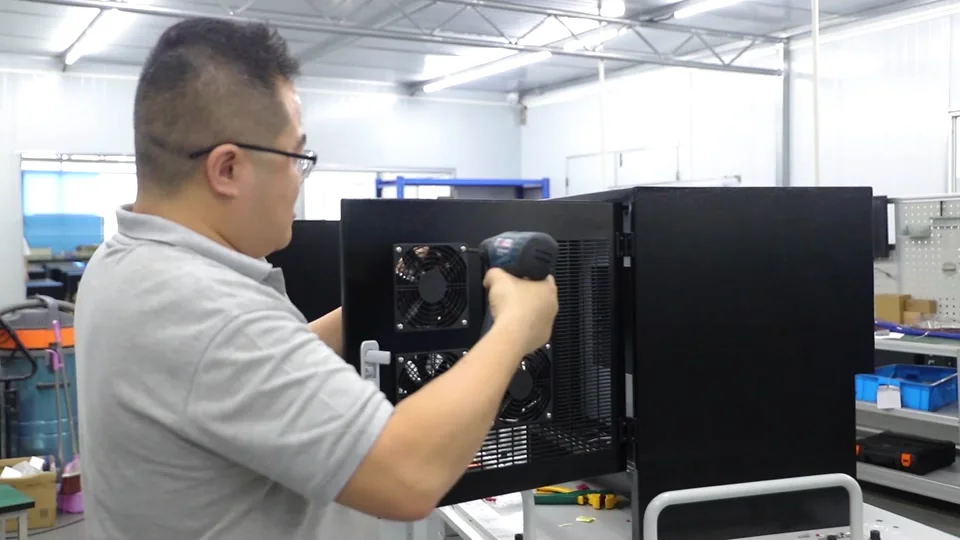

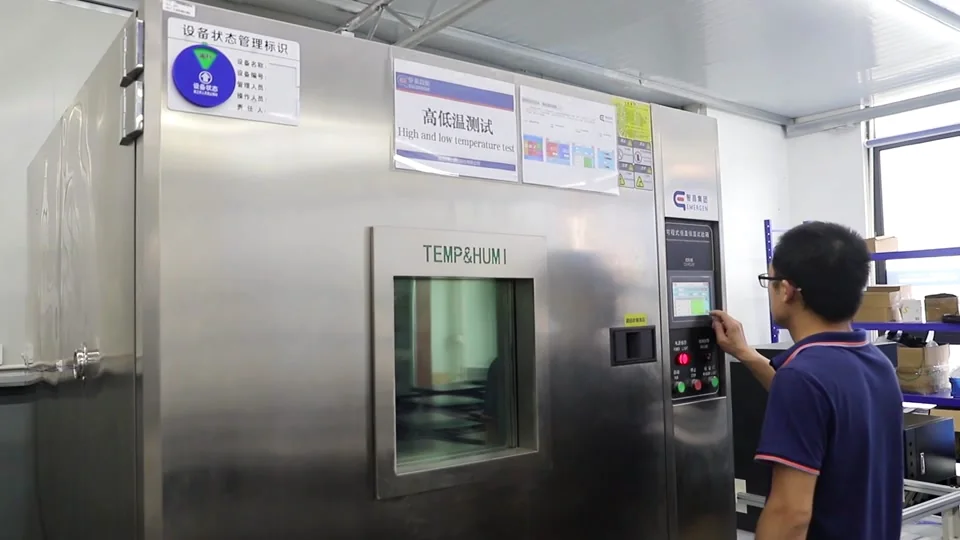

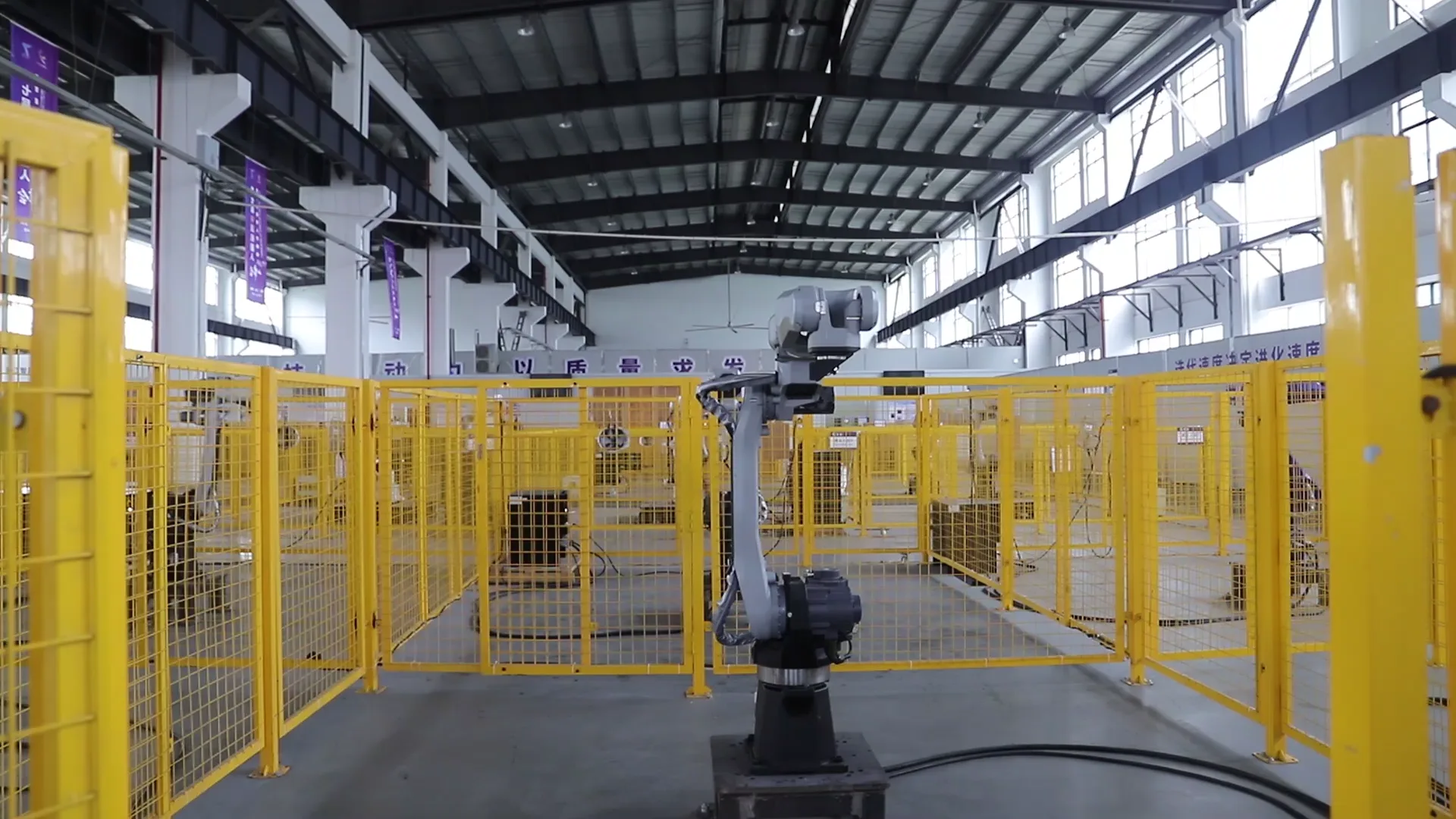

Robot reliability depends on more than a catalog specification. Available production evidence includes controller assembly, high- and low-temperature testing and complete robot motion validation before application deployment.
How to Start a Six-Axis Robot Project
Application review
Define the process, workpiece, machine and target production cycle.
Robot selection
Check payload, reach, wrist load, protection and motion envelope.
Cell engineering
Match the gripper, fixture, controls, guarding and peripheral equipment.
Testing and delivery
Validate the sequence, interfaces and operating conditions before shipment.
Six-Axis Industrial Robot FAQ
What applications can a six-axis industrial robot automate?
Typical applications include robotic welding, CNC machine tending, injection molding part handling, press loading, assembly, material transfer, packaging and palletizing. Feasibility depends on the workpiece, process, cycle time and installation environment.
How do I choose the correct robot payload and reach?
Payload must include the workpiece, gripper and any cables or sensors carried by the wrist. Reach should be checked against the complete motion path, not only the distance between pick and place points. Wrist inertia and center of gravity must also be reviewed.
Can KEFAN provide more than the robot arm?
Yes. Depending on the project, the scope can include end-of-arm tooling, fixtures, vision, conveyors, safety guarding, machine communication and complete robot cell integration.
Which industrial communication protocols are available?
Standard options include EtherCAT, Modbus TCP, EtherNet/IP and TCP/IP. DeviceNet, PROFIBUS, PROFINET and CC-Link are available depending on the controller configuration.
What information is needed for a robot recommendation?
Send the part drawing or photos, workpiece weight and dimensions, process description, current operation video, machine model, target cycle, floor layout, destination country and project schedule.
Need a Six-Axis Robot Recommendation?
Send your part drawing, workpiece weight, process video and target cycle time. Our team will review the application and identify a practical robot and integration direction.
