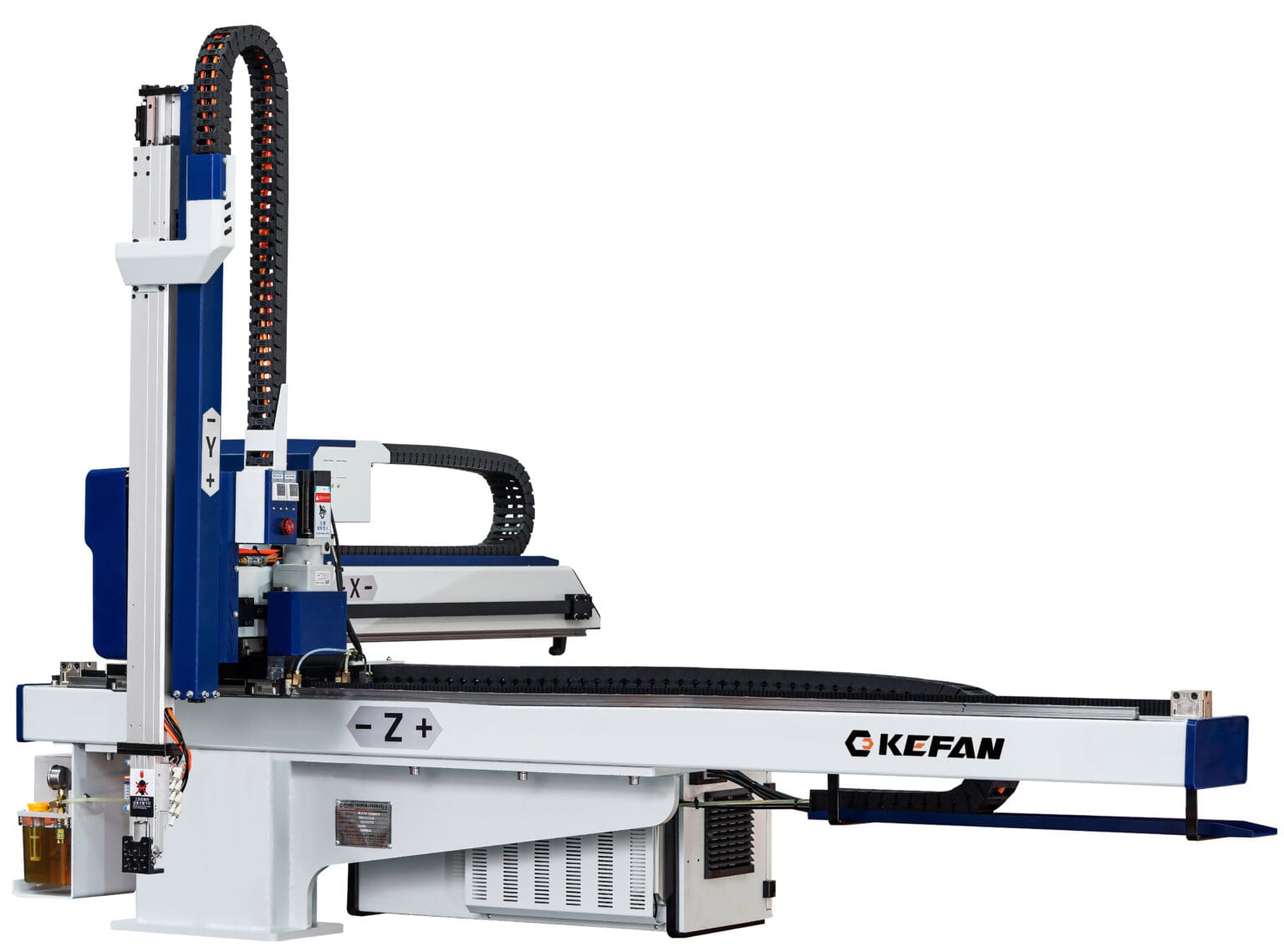

KAW850S3 3-Axis Servo Robot for 120-260T Injection Molding
KAW850S3 is a 3-axis servo robot for 120-260T injection molding machines. It handles straight take-out and placement, which covers the majority of standard molding cells without paying for wrist rotation you do not need.
Specifications
| Suitable injection molding machine | 120-260T |
|---|---|
| Traverse stroke | 1450 mm |
| Crosswise stroke | 720 mm |
| Vertical stroke | 850 mm |
| Maximum load | 6 kg |
| Axes | 3 (traverse, crosswise, vertical) |
| Machine interface | EUROMAP 67 / SPI |
Standard configuration shown. Stroke, payload and EOAT options can be customised — confirm your machine interface and part geometry with our engineer before ordering.
When KAW850S3 fits your cell
- Standard take-out and placement where part orientation is not critical.
- High-cycle packaging and consumer goods where straight strokes are enough.
- Cells that already have downstream orientation or stacking equipment.
- Budget-sensitive projects that do not need wrist rotation.
EOAT and integration
Three-axis cells usually run vacuum cup tooling for flat parts or mechanical grippers for parts with a grippable feature. If your part must be rotated before it reaches the conveyor, either add a downstream fixture or step up to a 5-axis model.
