KAW1100S3 is a 3-axis servo robot for 260-400T injection molding machines. It handles straight take-out and placement, which covers the majority of standard molding cells without paying for wrist rotation you do not need.

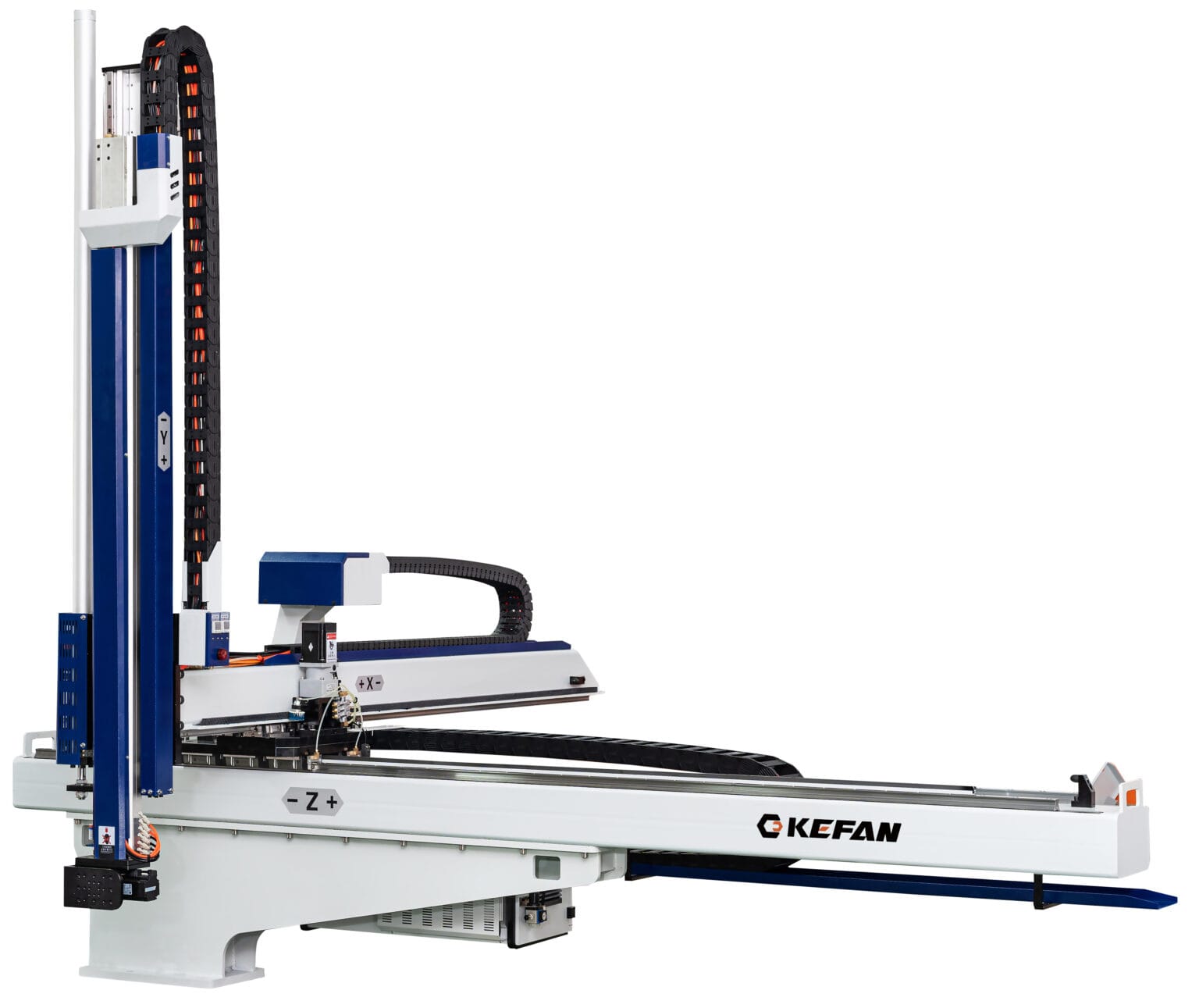

KEFAN heavy-payload servo robot, long traverse, for large injection molding machines

Specifications

Suitable injection molding machine260-400T
Traverse stroke1750 mm
Crosswise stroke820 mm
Vertical stroke1100 mm
Maximum load8 kg
Axes3 (traverse, crosswise, vertical)
Machine interfaceEUROMAP 67 / SPI

Standard configuration shown. Stroke, payload and EOAT options can be customised — confirm your machine interface and part geometry with our engineer before ordering.

When KAW1100S3 fits your cell

  • Standard take-out and placement where part orientation is not critical.
  • High-cycle packaging and consumer goods where straight strokes are enough.
  • Cells that already have downstream orientation or stacking equipment.
  • Budget-sensitive projects that do not need wrist rotation.

EOAT and integration

Three-axis cells usually run vacuum cup tooling for flat parts or mechanical grippers for parts with a grippable feature. If your part must be rotated before it reaches the conveyor, either add a downstream fixture or step up to a 5-axis model.

See the full EOAT range and the 3-axis servo robots overview.
