CX2518 is a 6-axis industrial robot for Material handling injection molding machines. As an articulated arm it reaches around fixtures and machines rather than moving on a linear beam, which is what you need when the work is not a straight in-and-out take-out.

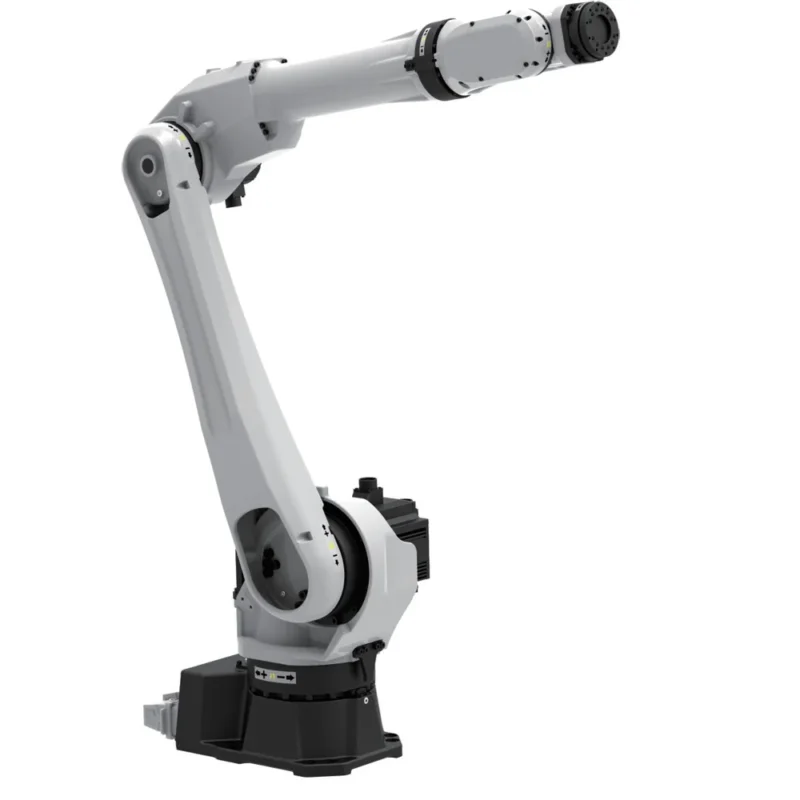

KEFAN CX2518 6-axis industrial robot arm, 25 kg payload

Specifications

Payload25 kg
Reach1808 mm
Repeatability+/-0.08 mm
Protection classIP54, axes 4-6 IP67
Typical applicationMaterial handling
Axes6

Standard configuration shown. Stroke, payload and EOAT options can be customised — confirm your machine interface and part geometry with our engineer before ordering.

When CX2518 fits your cell

  • Tasks beyond straight take-out: welding, CNC tending, assembly, palletizing.
  • Cells where the robot must reach around a fixture or machine.
  • Mixed-product lines that need a reprogrammable path rather than fixed strokes.
  • Integration projects where repeatability is specified by the process.

EOAT and integration

Six-axis work is tool-driven: welding torches, grippers for CNC tending, and custom end effectors for assembly. We build the tool to the task and confirm reach and repeatability against your actual layout.

See the full EOAT range and the six-axis industrial robot arms overview.
