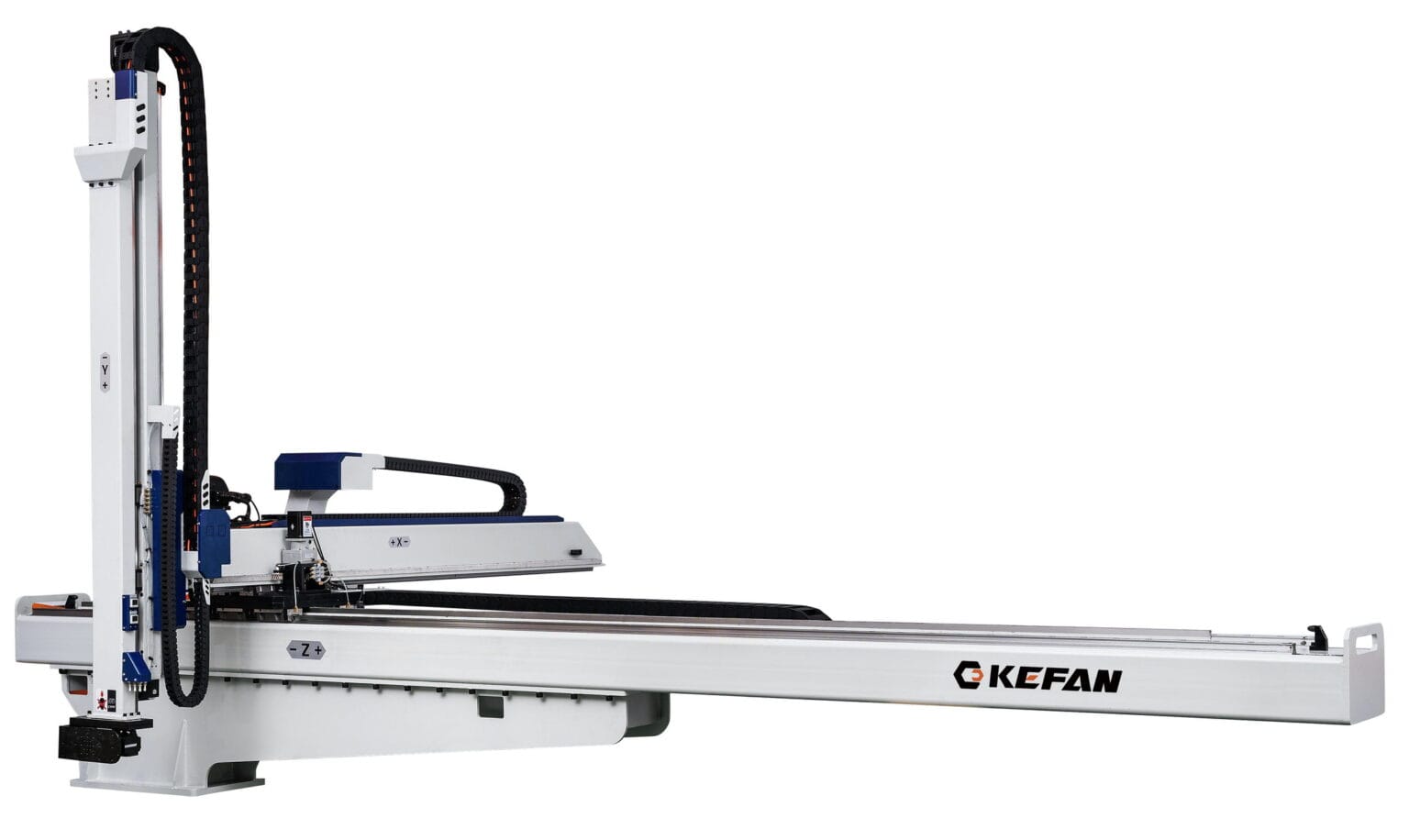

KOW2000S4 4-Axis Servo Robot for 1300-1800T Injection Molding
KOW2000S4 is a 4-axis servo robot for 1300-1800T injection molding machines. The top-entry layout reaches over the fixed platen, which suits large machines and wide molds where a side-entry arm would foul the tie bars.
Specifications
| Suitable injection molding machine | 1300-1800T |
|---|---|
| Traverse stroke | 2515 mm |
| Crosswise stroke | 1700 mm |
| Vertical stroke | 2000 mm |
| Maximum load | 35 kg |
| Layout | Top entry |
| Machine interface | EUROMAP 67 / SPI |
Standard configuration shown. Stroke, payload and EOAT options can be customised — confirm your machine interface and part geometry with our engineer before ordering.
When KOW2000S4 fits your cell
- Large-tonnage machines where the mold area is wide.
- Parts too large or heavy for a side-entry envelope.
- Cells with headroom above the machine rather than beside it.
- Applications needing long traverse for downstream placement.
EOAT and integration
Large top-entry cells usually carry heavier EOAT, so payload budget matters more than on small machines. We size vacuum tooling with multiple cups for large flat parts, and mechanical grippers for heavy or textured parts.
See the full EOAT range and the top-entry robots overview.
